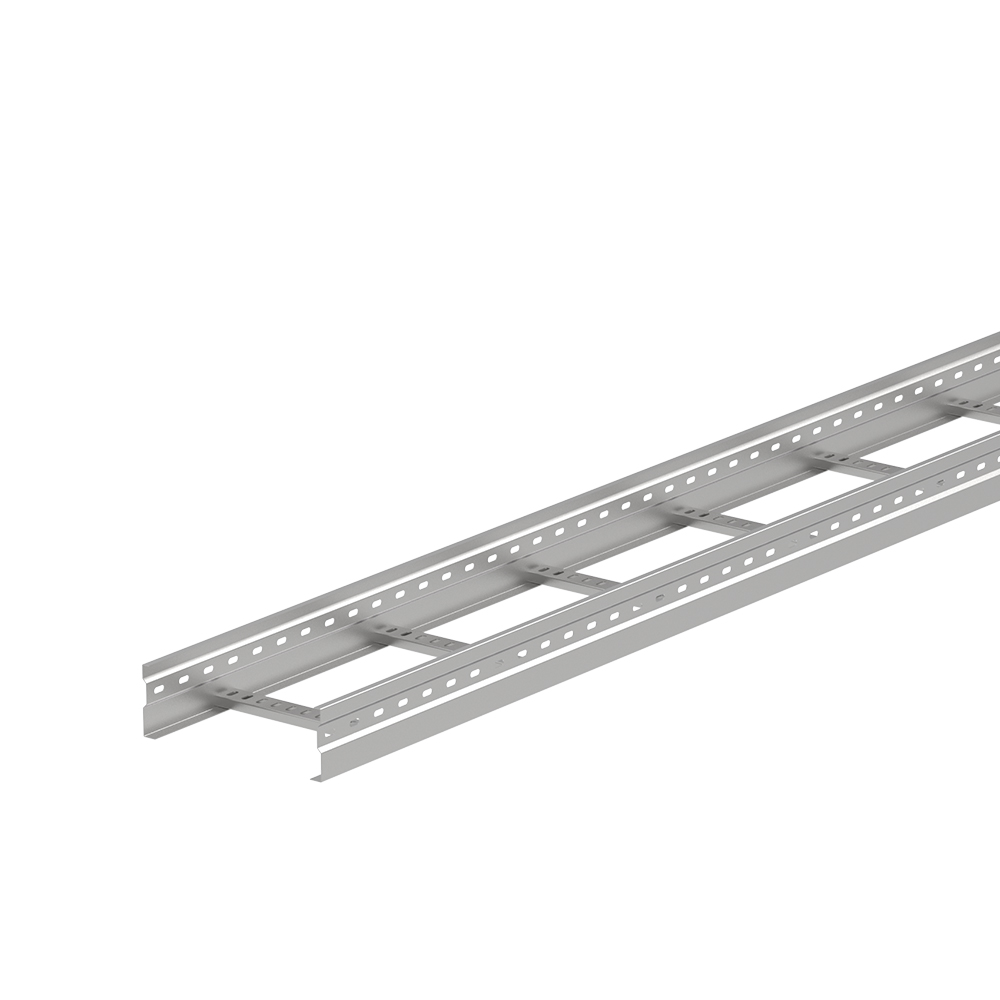

ECTRAY manufactures steel cable ladder systems for industrial, power, infrastructure, and other heavy-duty applications. Available in multiple sizes, materials, surface finishes, fittings, and support configurations to meet different cable loads, support spans, installation environments, and project requirements.
| Parameter | Specification |
|---|---|
| Product Type | Steel Cable Ladder |
| Width | 200–1000 mm |
| Side Rail Height | 100 / 150 / 200 mm |
| Length | 3000 / 4000 / 6000 mm |
| Material | Stainless Steel |
| Surface Finish | HDG / ZM / Powder Coating |
| Stainless Steel Grade | SS304 / SS316 |
| Material Thickness | According to project and load requirements |
| Rung Spacing | Project-specific |
| Support Span | Project-specific |
| Load Requirement | Standard / Heavy-Duty / Project-specific |

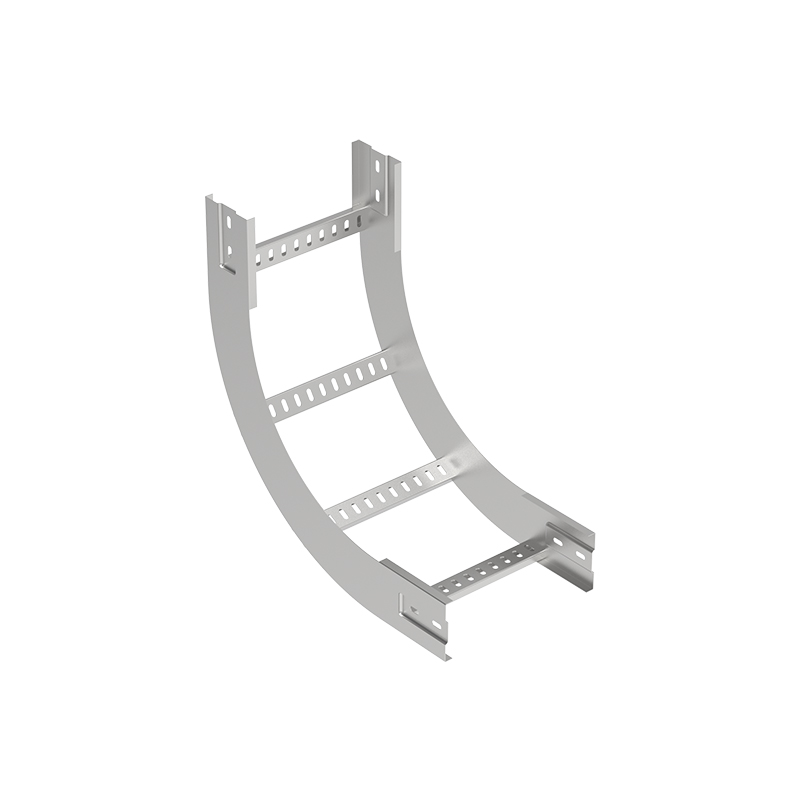

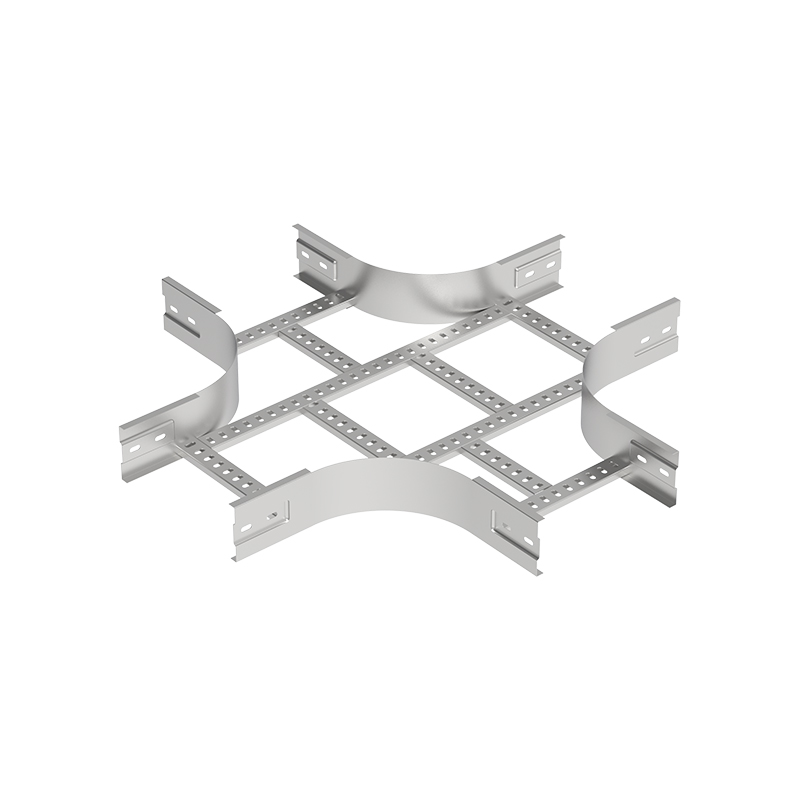

| Fittings | Bend / Tee / Cross / Riser / Reducer |

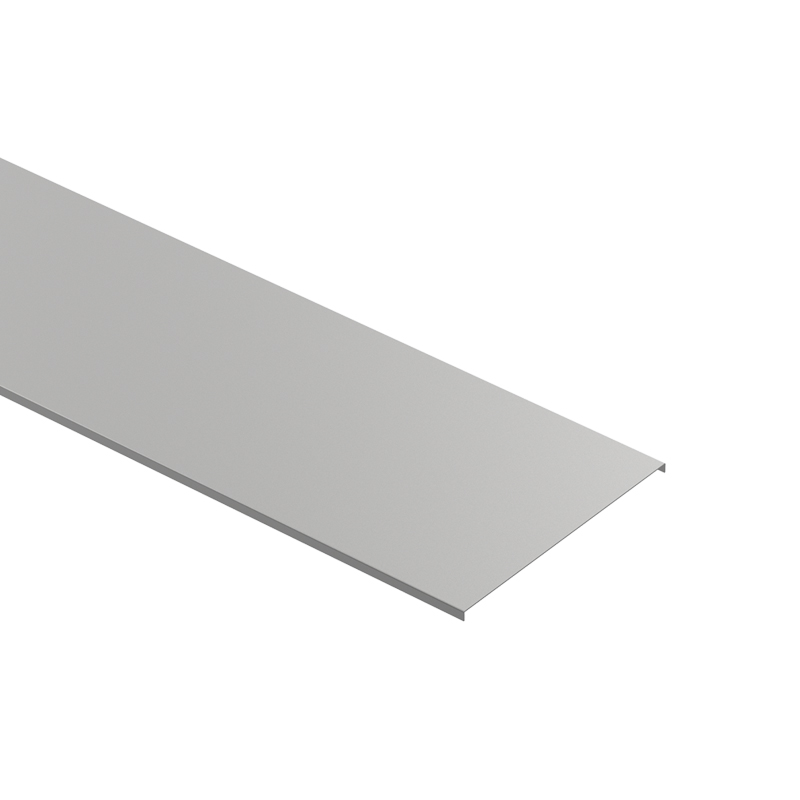

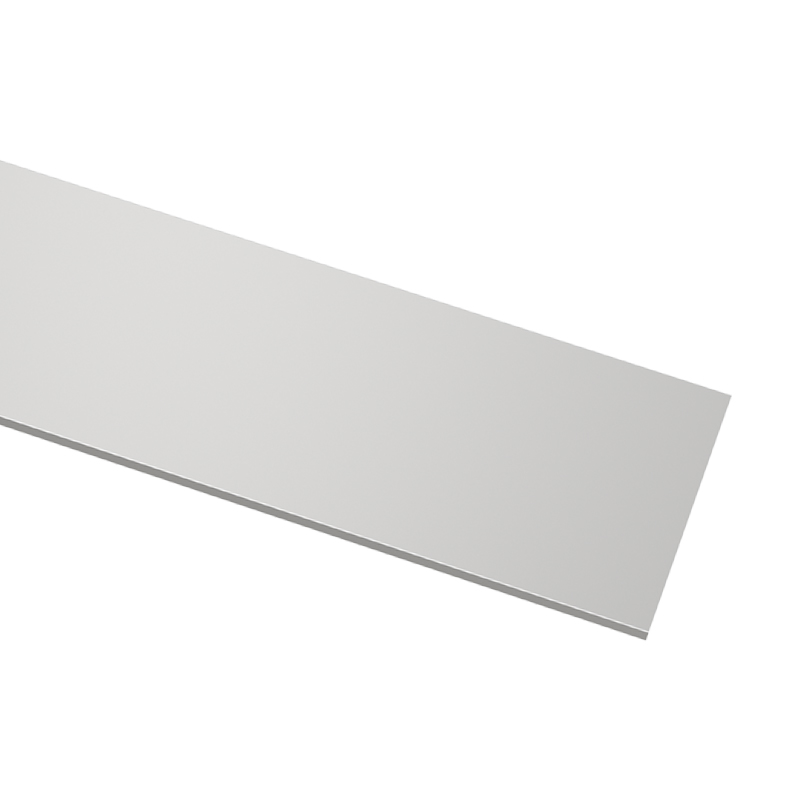

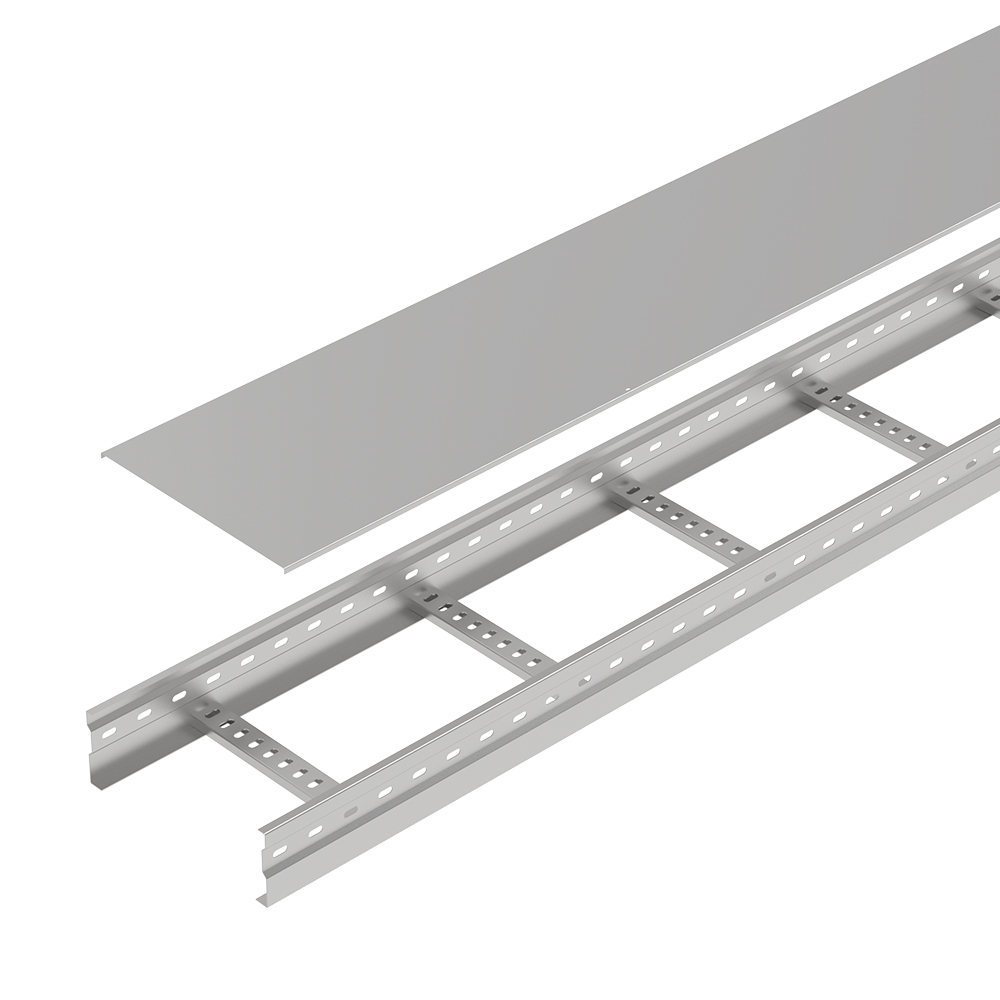

| Cover | Optional |
| Customization | Size / Thickness / Finish / Fittings / Support System |
| Sample | Available |
Final dimensions, thickness, rung spacing, and structural configuration should be confirmed according to cable load, support span, project drawings, and installation requirements.
Steel construction provides reliable structural performance for large cable bundles and demanding industrial cable support applications.
Side-rail geometry, material thickness, rung construction, and connection design can be selected according to project structural requirements.
Steel cable ladder configurations can be developed for higher cable loads and longer support spans.
Load capacity should always be evaluated together with support span, ladder dimensions, material thickness, and the complete support configuration.
The open rung structure provides natural airflow around installed cables while maintaining convenient access for cable installation, inspection, maintenance, and future expansion.

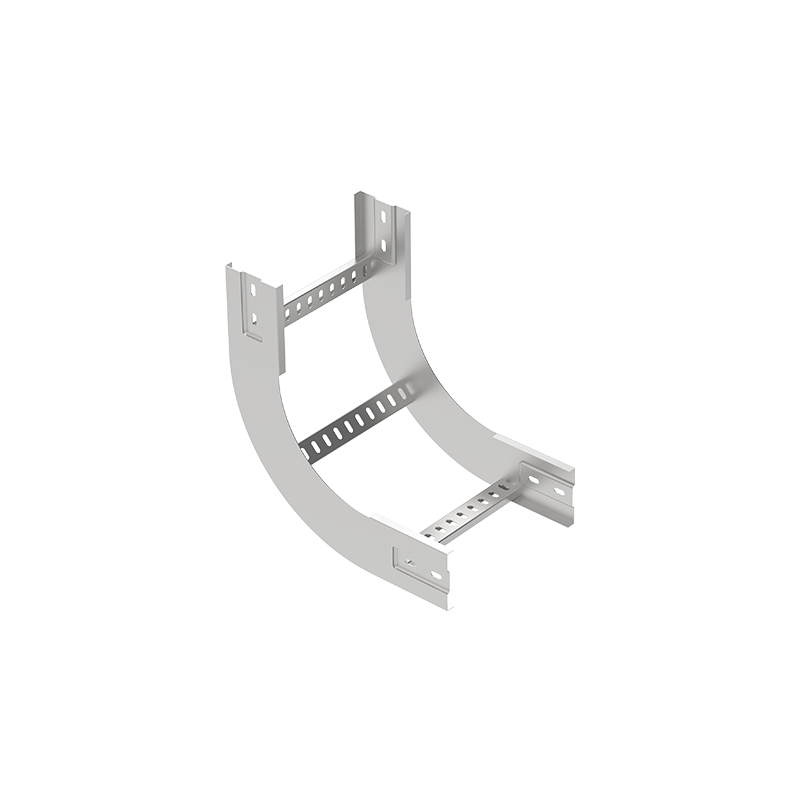

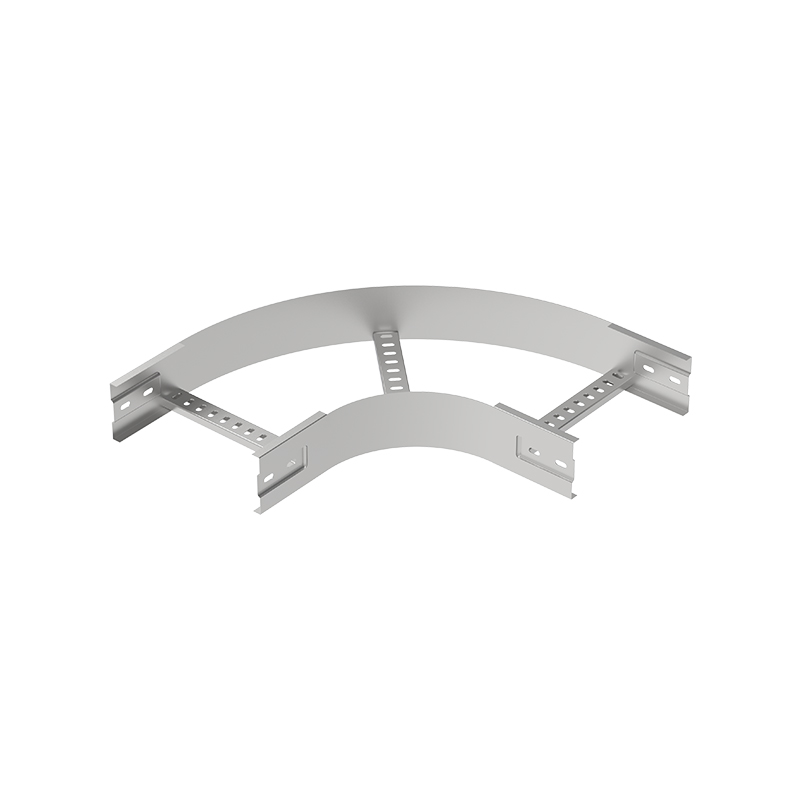

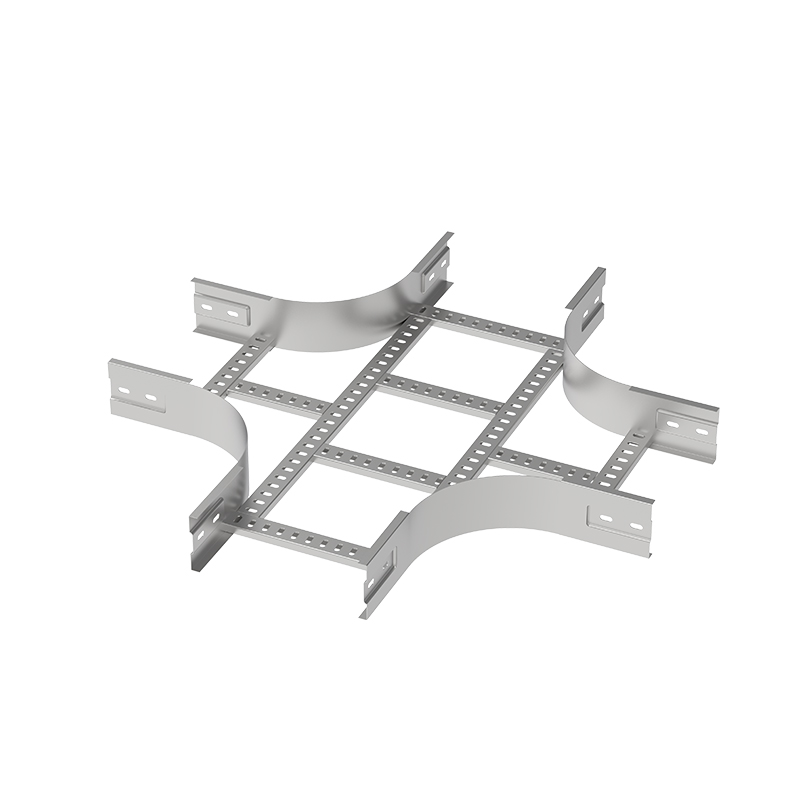

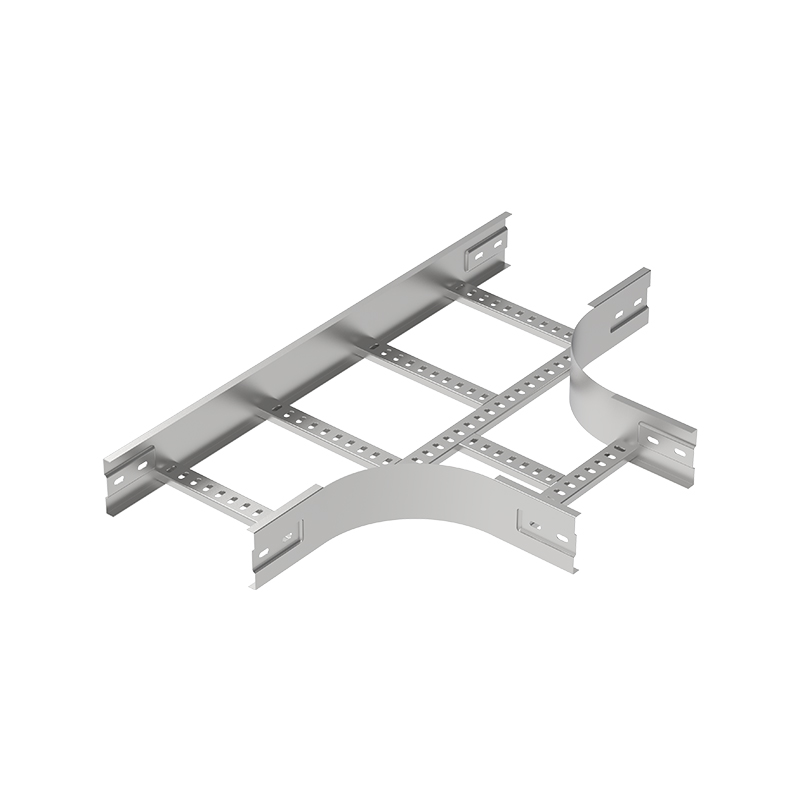

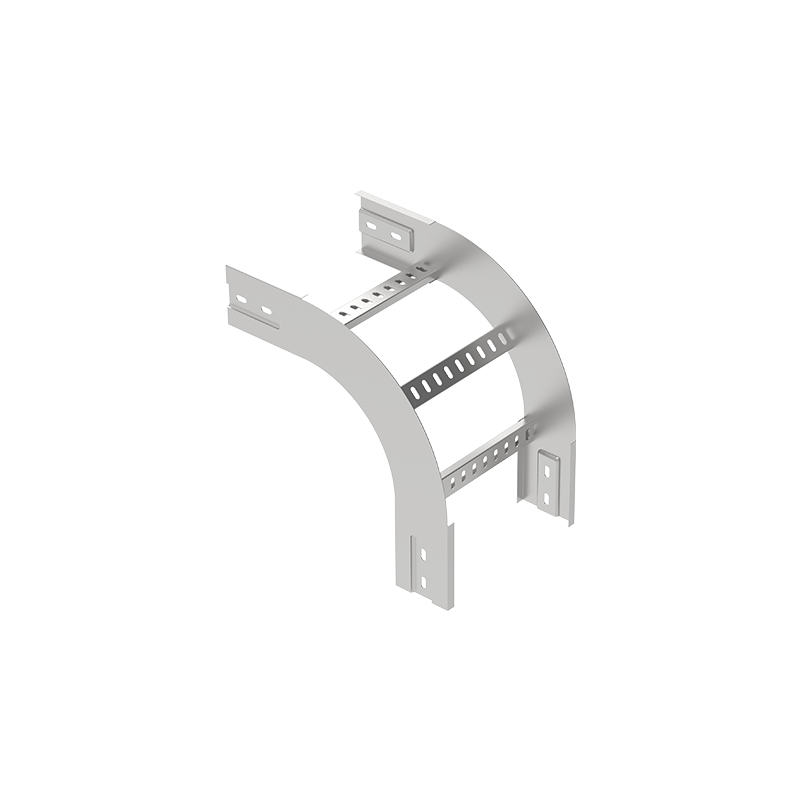

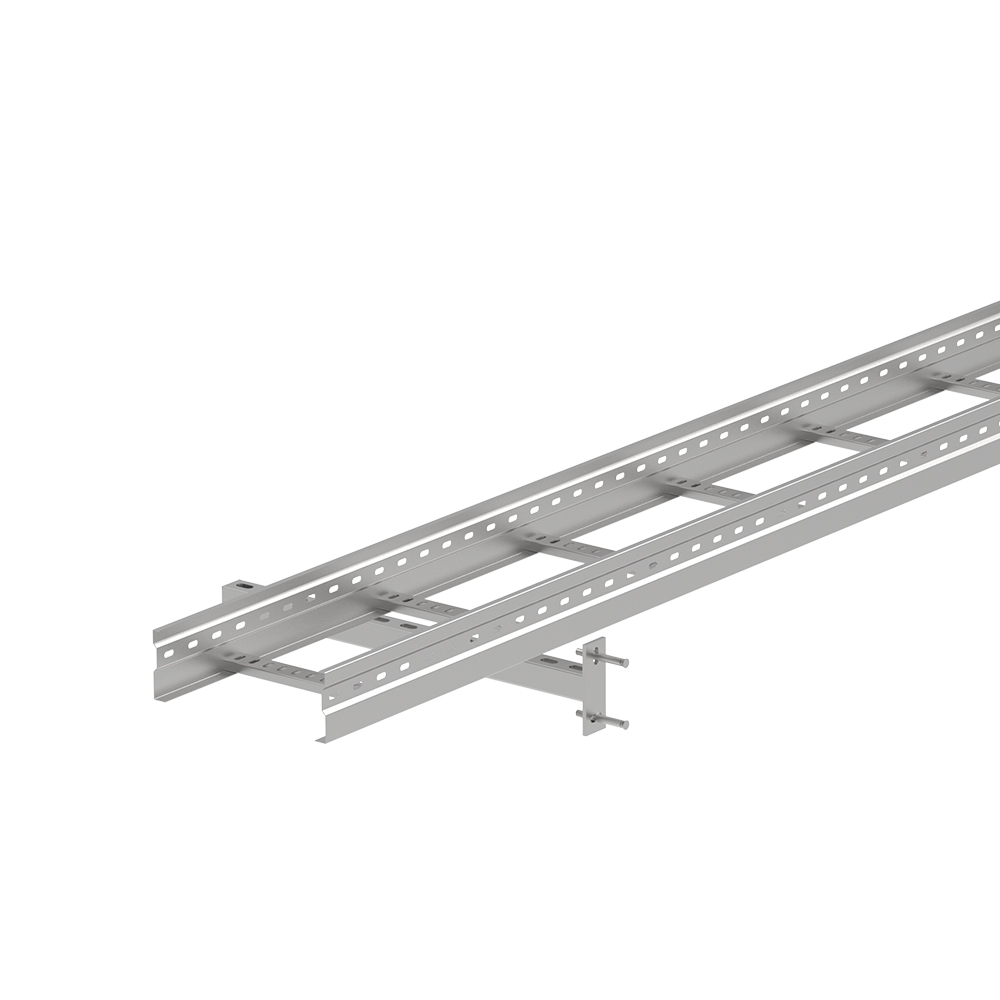

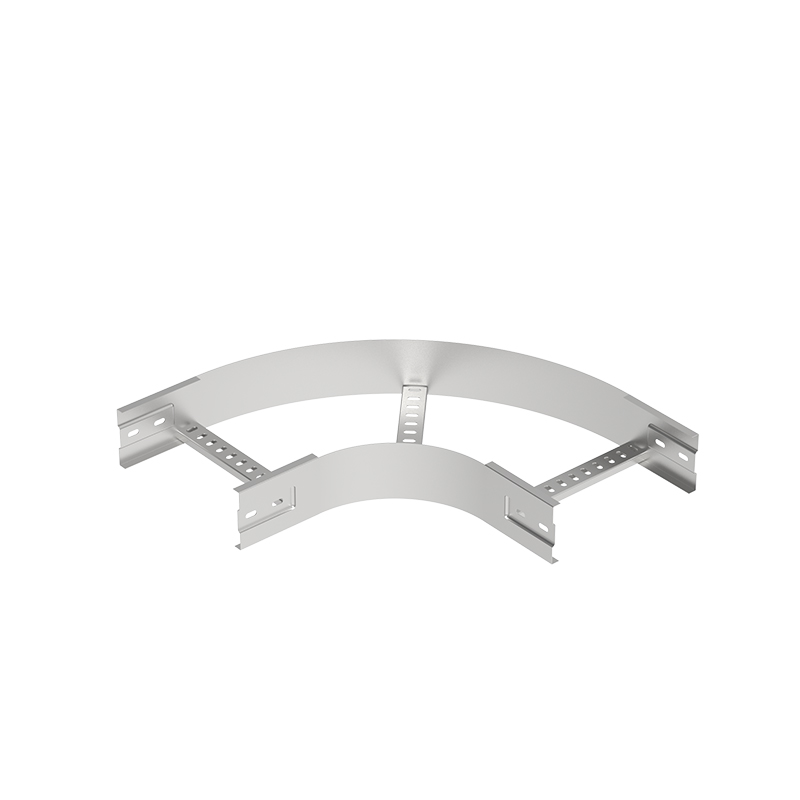

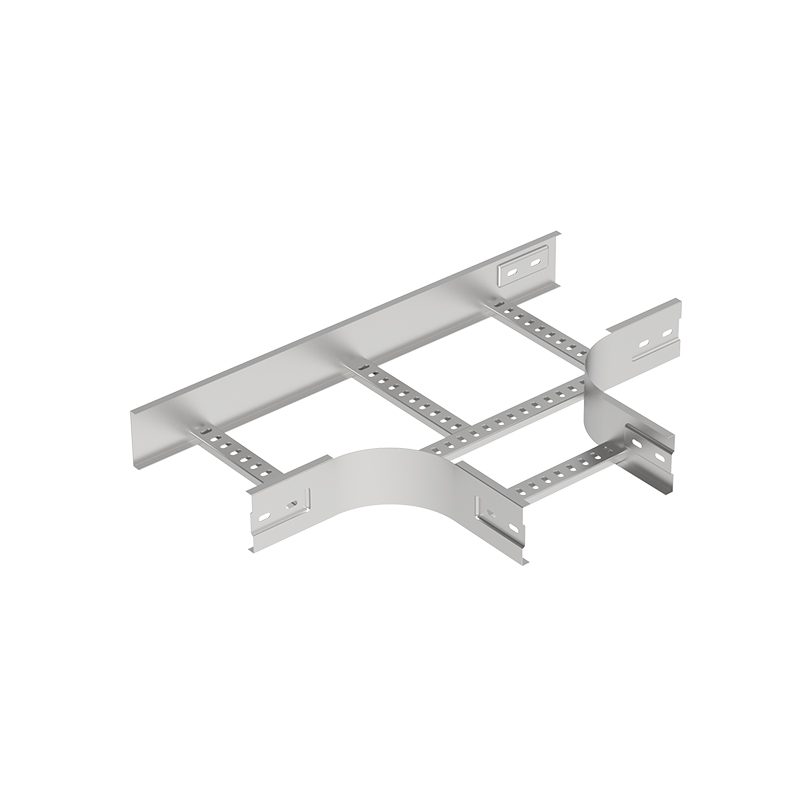

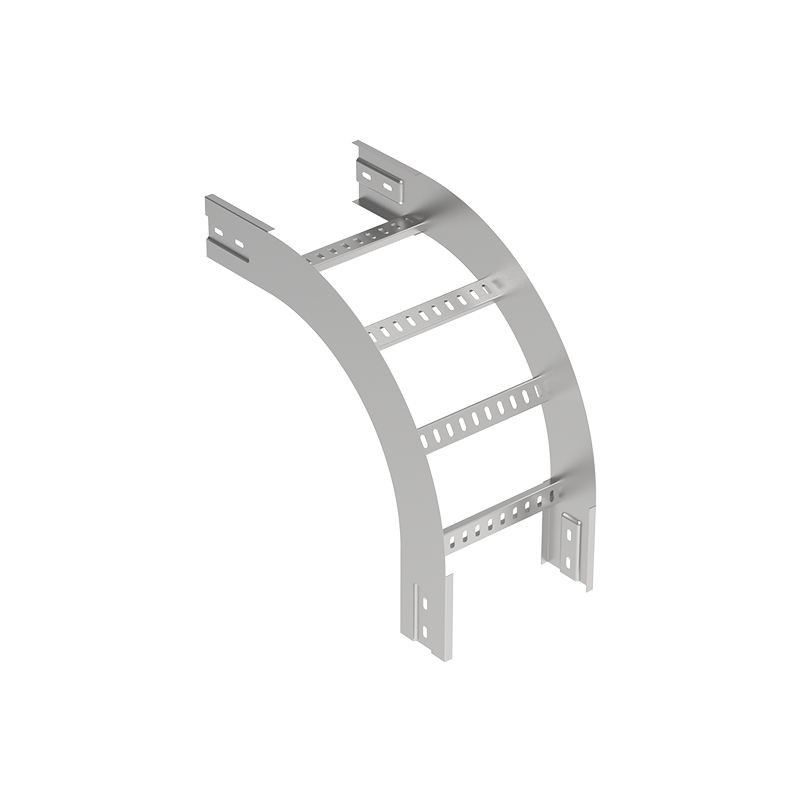

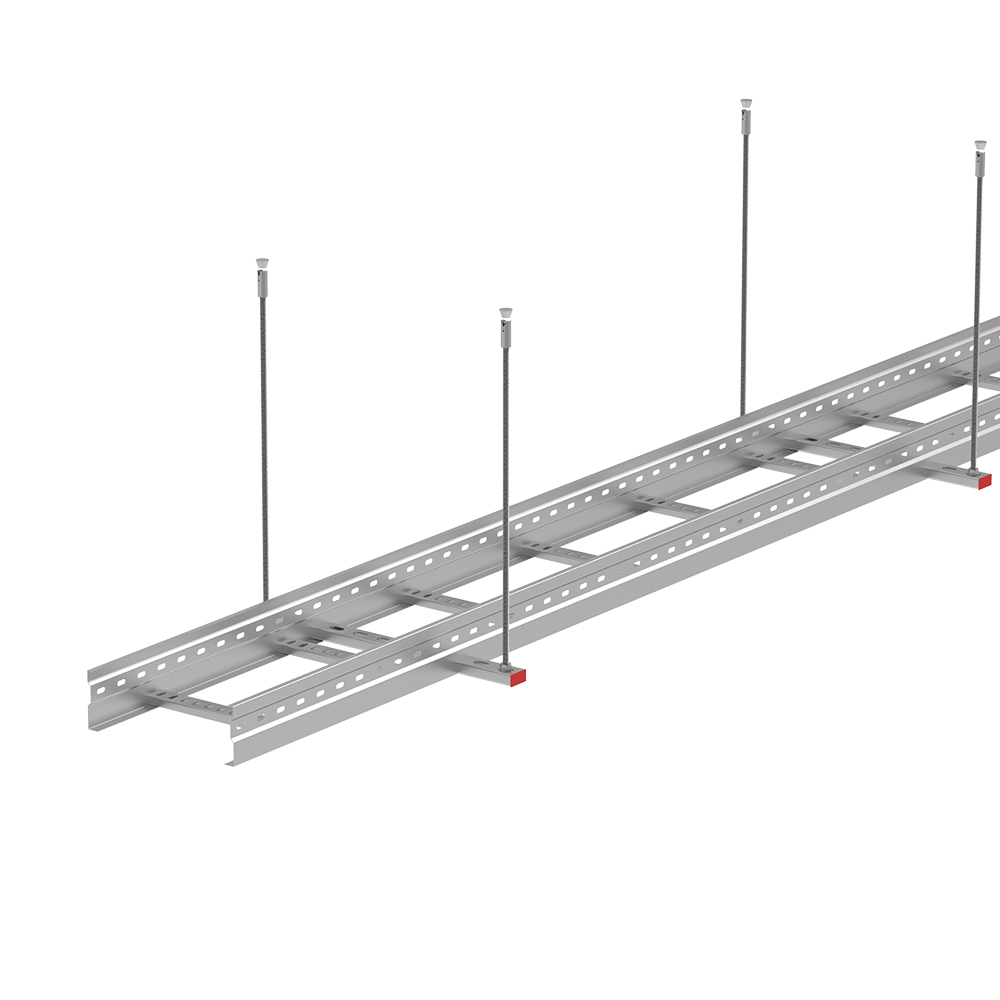

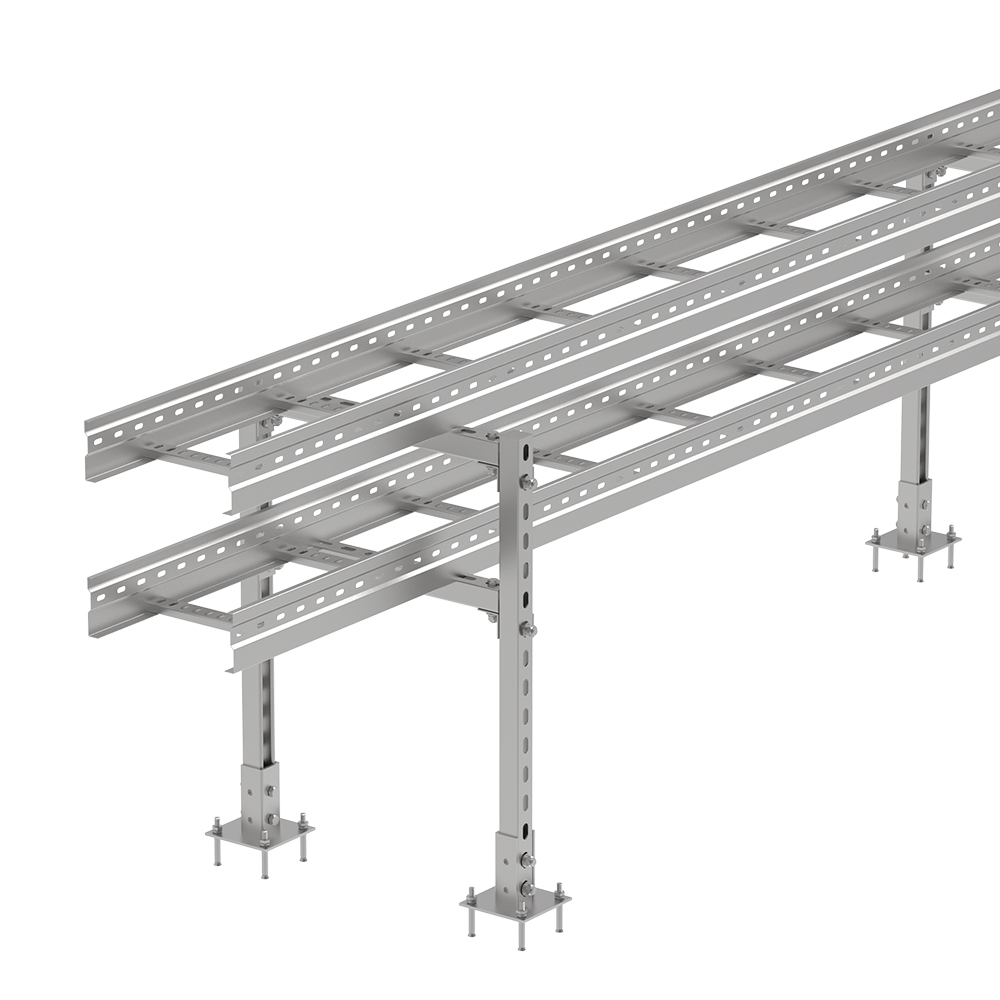

Straight cable ladder sections can be combined with bends, risers, tees, crosses, reducers, splice plates, covers, clamps, and structural supports to create a complete cable routing system.
Model | Height(mm) | Width(mm) | Length(mm) |
CL-100-200 | 100 | 200 | 3000/4000/6000 |
CL-100-300 | 100 | 300 | 3000/4000/6000 |
CL-100-400 | 100 | 400 | 3000/4000/6000 |
CL-100-500 | 100 | 500 | 3000/4000/6000 |
CL-100-600 | 100 | 600 | 3000/4000/6000 |
CL-100-700 | 100 | 700 | 3000/4000/6000 |
CL-100-800 | 100 | 800 | 3000/4000/6000 |
CL-100-900 | 100 | 900 | 3000/4000/6000 |
CL-100-1000 | 100 | 1000 | 3000/4000/6000 |
CL-150-200 | 150 | 200 | 3000/4000/6000 |
CL-150-300 | 150 | 300 | 3000/4000/6000 |
CL-150-400 | 150 | 400 | 3000/4000/6000 |
CL-150-500 | 150 | 500 | 3000/4000/6000 |
CL-150-600 | 150 | 600 | 3000/4000/6000 |
CL-150-700 | 150 | 700 | 3000/4000/6000 |
CL-150-800 | 150 | 800 | 3000/4000/6000 |
CL-150-900 | 150 | 900 | 3000/4000/6000 |
CL-150-1000 | 150 | 1000 | 3000/4000/6000 |
CL-200-200 | 200 | 200 | 3000/4000/6000 |
CL-200-300 | 200 | 300 | 3000/4000/6000 |
CL-200-400 | 200 | 400 | 3000/4000/6000 |
CL-200-500 | 200 | 500 | 3000/4000/6000 |
CL-200-600 | 200 | 600 | 3000/4000/6000 |
CL-200-700 | 200 | 700 | 3000/4000/6000 |
CL-200-800 | 200 | 800 | 3000/4000/6000 |
CL-200-900 | 200 | 900 | 3000/4000/6000 |
CL-200-1000 | 200 | 1000 | 3000/4000/6000 |
Hot-dip galvanized provides high structural strength combined with enhanced corrosion protection.
It is widely considered for outdoor, industrial, utility, transportation, and infrastructure cable support applications.
Stainless steel cable ladders provide high corrosion resistance for demanding installation environments.
SS304 is suitable for many industrial applications, while SS316 is generally considered for more demanding coastal, chemical, humid, or corrosive environments.
ZM coated steel combines steel structural performance with enhanced corrosion resistance.
It can be considered for selected outdoor, renewable-energy, industrial, and infrastructure projects where long-term corrosion protection is an important design requirement.
Powder-coated provides a finished protective surface for selected indoor, industrial, and project-specific cable support applications.
The required coating system should be selected according to the actual installation environment and project specification.
| Environment | Recommended Option | Typical Applications | Main Selection Consideration |

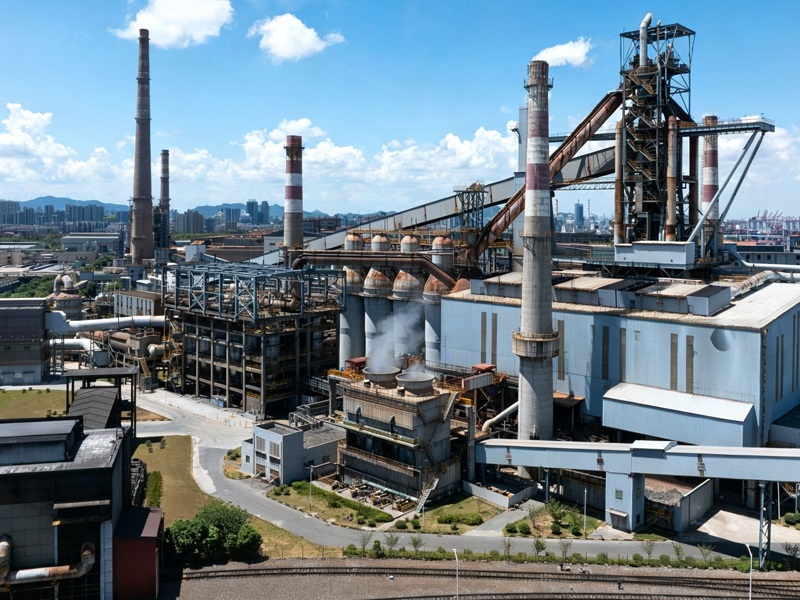

| Heavy Industrial Facilities | HDG / ZM Steel | Steel plants, cement plants, mining operations | High load + corrosion resistance |

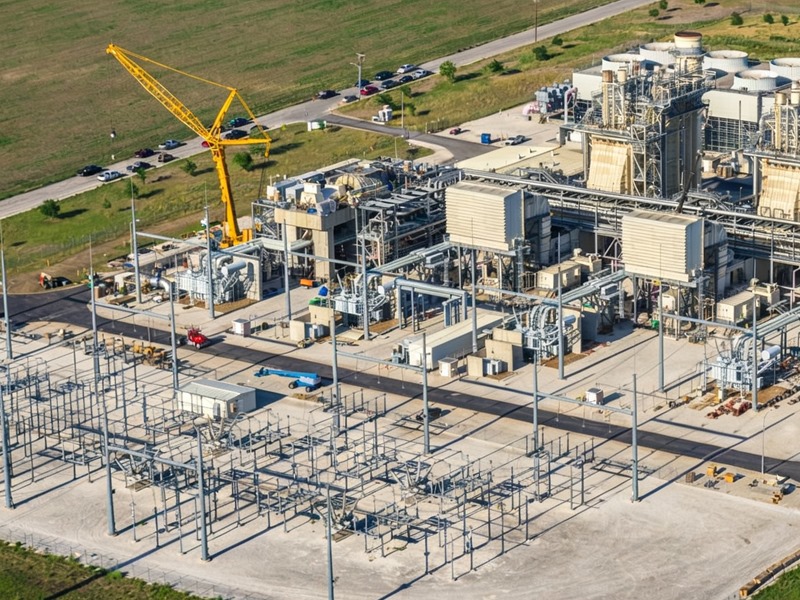

| Power & Utility | HDG Steel | Power plants, substations, utilities | Structural strength + outdoor durability |

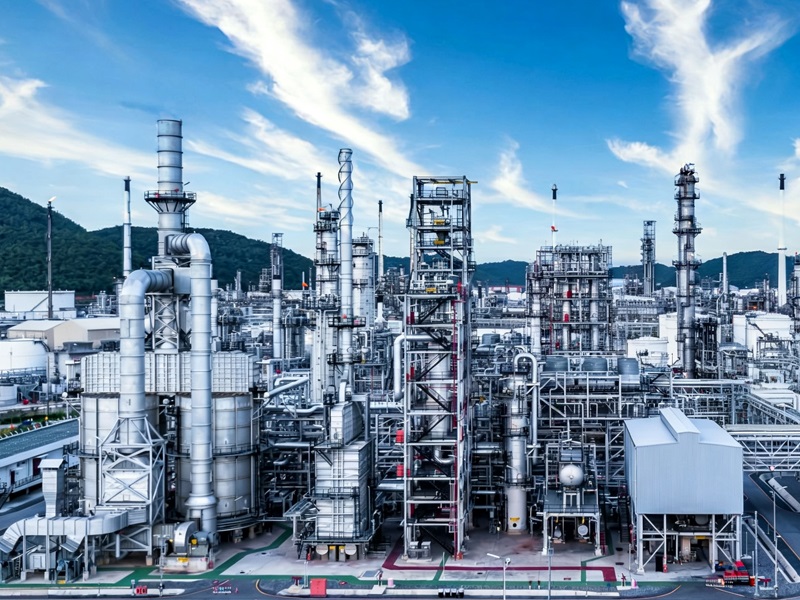

| Coastal / Highly Corrosive | SS316 | Coastal, chemical, petrochemical | High corrosion resistance |
| Outdoor Infrastructure | HDG / ZM Steel | Airports, railways, bridges, tunnels | Weather and environmental exposure |
| Chemical Environment | SS304 / SS316 | Chemical and processing plants | Chemical and corrosion exposure |
