ECTRAY wire mesh cable tray offers a lightweight yet durable cable support system designed for efficient cable routing and long-term performance. Its open structure improves ventilation, reduces cable heat buildup, and allows fast installation, making it suitable for data centers, commercial buildings, manufacturing facilities, and industrial projects.
The open mesh structure allows continuous airflow around installed cables, improving heat dissipation and helping maintain stable cable operating temperatures.
ECTRAY wire mesh cable trays are designed with a lightweight yet strong structure that provides reliable cable support while reducing the overall system weight.
The open wire design provides excellent visibility and accessibility, allowing technicians to quickly identify cables, perform maintenance, and make system adjustments.
ECTRAY wire mesh cable trays are available in different widths, depths, and surface treatments to meet various project requirements.
The versatile design supports a wide range of cable types, including power cables, data cables, fibre optic cables, and control cables.
Pre-galvanized steel wire mesh cable trays are manufactured using steel that has already received a zinc coating before fabrication.
Hot-dip galvanized wire mesh cable trays receive a protective zinc coating through a high-temperature galvanizing process.
Stainless steel wire mesh cable trays provide excellent corrosion resistance and durability for harsh environments.
Powder coating provides an additional protective layer that improves surface durability, corrosion resistance, and appearance.
Model | Height(mm) | Width(mm) | Length(mm) |
WM-50-50 | 50 | 50 | 3000/4000/6000 |
WM-50-100 | 50 | 100 | 3000/4000/6000 |
WM-50-200 | 50 | 200 | 3000/4000/6000 |
WM-50-300 | 50 | 300 | 3000/4000/6000 |
WM-50-400 | 50 | 400 | 3000/4000/6000 |
WM-50-500 | 50 | 500 | 3000/4000/6000 |
WM-50-600 | 50 | 600 | 3000/4000/6000 |
WM-75-100 | 75 | 100 | 3000/4000/6000 |
WM-75-200 | 75 | 200 | 3000/4000/6000 |
WM-75-300 | 75 | 300 | 3000/4000/6000 |
WM-75-400 | 75 | 400 | 3000/4000/6000 |
WM-75-500 | 75 | 500 | 3000/4000/6000 |
WM-75-600 | 75 | 600 | 3000/4000/6000 |
WM-100-100 | 100 | 100 | 3000/4000/6000 |
WM-100-200 | 100 | 200 | 3000/4000/6000 |
WM-100-300 | 100 | 300 | 3000/4000/6000 |
WM-100-400 | 100 | 400 | 3000/4000/6000 |
WM-100-500 | 100 | 500 | 3000/4000/6000 |
WM-100-600 | 100 | 600 | 3000/4000/6000 |
Environment | Recommended Material | Typical Applications | Key Benefits |

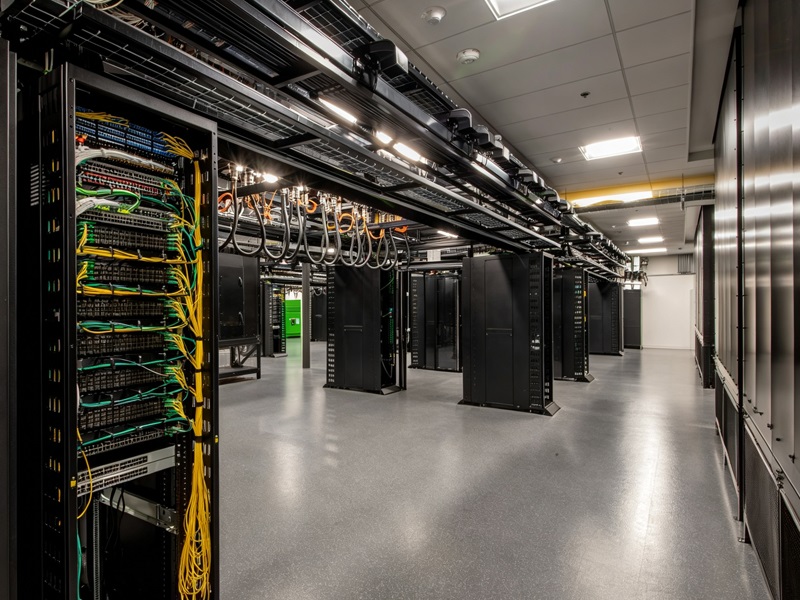

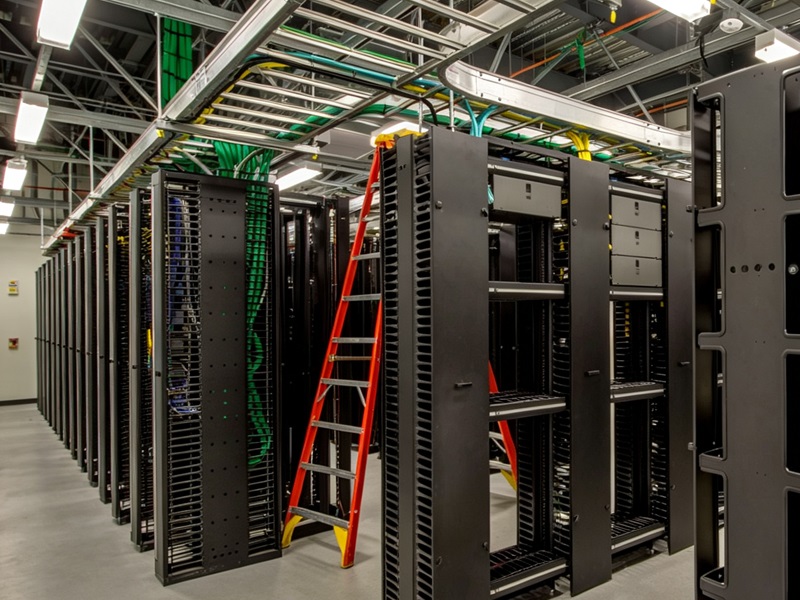

Data Centers | Galvanized | Server rooms, cloud data centers | Excellent airflow and flexible cable management |

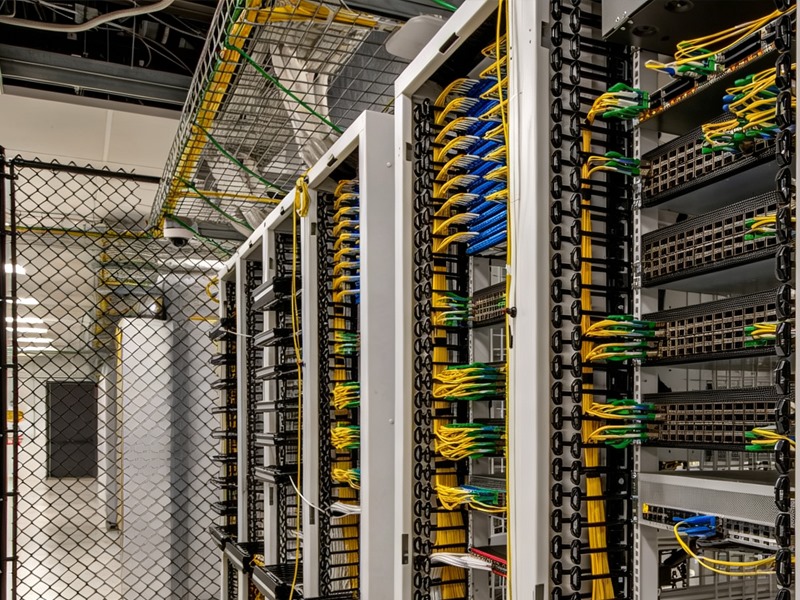

Communication Networks | Galvanized | Telecommunications, fiber optic systems | Easy cable routing and future expansion |
Commercial Buildings | GI Steel | Office buildings, retail centers | Attractive finish for exposed installations |
Industrial Facilities | Powder coating | Manufacturing plants, automation systems | Strong protection in harsh working environments |

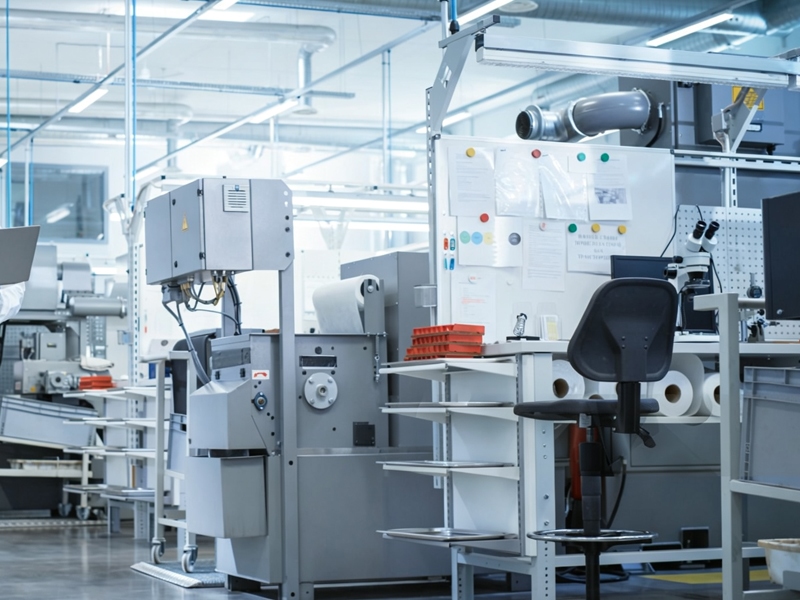

Food & Pharmaceutical Plants | Stainless Steel | Food processing facilities, clean rooms | Hygienic, corrosion-resistant, and easy to clean |
